Khoom nta:
Steamer yog koj thiab peb lub siab nyiam. Ntawm lub hiav txwv qhib lub hnub heats li koj steamer sai sai. Txaus siab rau lub hnub sab nraum zoov thiab ua kom txias hauv qab lawj thaum twg los xij koj xav tau kev noj qab haus huv. So kom txaus thaum lub tshuab cua txias ua haujlwm rau koj.

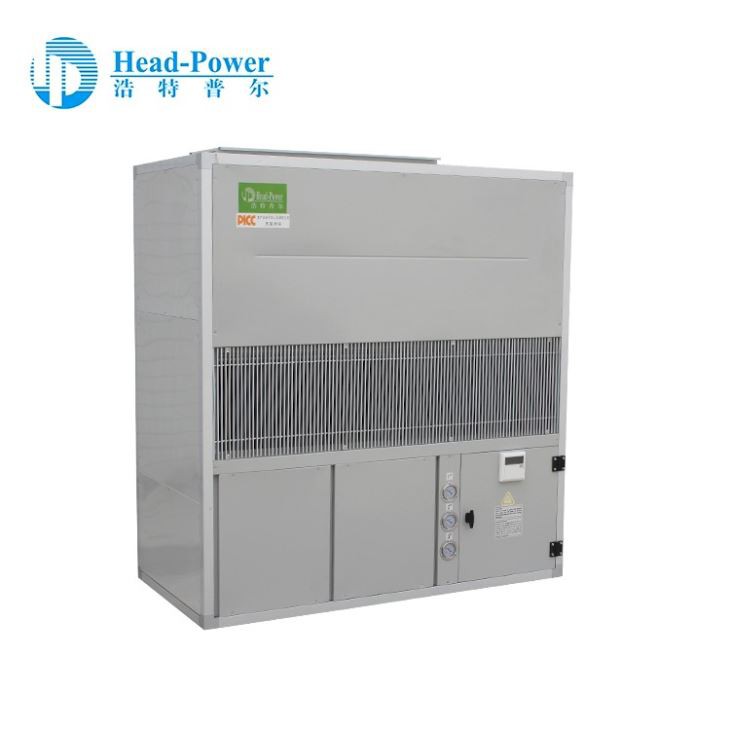

Steamer Marine Seawater Cooled Air Conditioner muaj cov hauv qab no nta:
1. Outlay hluav taws xob lub thawv rau kev teeb tsa yooj yim& kev saib xyuas.
2. Tsawg pib tam sim no ua tsaug rau lub zog ncua kev tswj tsim.
3. Kev ua haujlwm yuam kev muaj rau qhov xwm txheej ceev.
4. LCD zaub ntawm kev ua haujlwm raws li txoj cai.
5. Nickel-Copper tube-hauv-tube kub exchanger rau dej hiav txwv sab.
6. All-tooj liab nplua raj kub exchanger rau cua sab.
7. Ib qho PCB rau tag nrho cov kev tswj hwm thiab txo qis kev sib txuas ntawm cable, kev ntseeg siab dua kev saib xyuas yooj yim dua.
8. Universal rau ob qho tib si 50Hz thiab 60Hz.
Technical Specification:
Sea-water cooled Package Unit (Dej-Air) | |||
Qauv NO. | MWL | ||
Lub peev xwm txias | kW | 19-258 | |
Fais fab mov | 220V ~ 380V / 3PH / 50-60Hz | ||
Cov ntaub ntawv kiv cua | Cua ntws | m3/h | 1600~38500 |
Sab nraud static siab | Pa | 80-850 | |
Lub suab nrov | dB (A) | 50~73 | |
Lub cev muaj zog | kW | 0.3~22 | |
Cov tub yees | Hom | R22/R407c/R410a | |
Compressor | Hom | Hom | Hermetic Scroll |
Rated zog | kW | 2.25~66 | |
Water side heat exchanger | Hom | Hom | Alpaka& SS316 Tube phaj& kawg lub plhaub thiab lub raj |
Dej ntws | m3/h | 2.3~42 | |
Dej siab poob | mH2O | 2.3~6.3 | |
Cov yeeb nkab txuas | hauv / mm | DN25/32/40/50/65 | |
Cua sab cua kub exchanger | Hom | Copper tubes nrog txhuas fins los yog tooj liab fins | |
Chav Dimensions | L*W*H | mm | 750x550x1600~3500x1700x2000 |
Nco tseg: | |||
1. Nominal txias txias: sab hauv tsev cua kub 27 ℃ DB / 19.5 ℃ WB; dej hiav txwv inlet / qhov hluav taws xob kub 32 ℃ / 37 ℃. | |||
FAQ:
Q1: Yuav ua li cas txog qhov warranty?
A1: Lub warranty yog 18 lub hlis tom qab xa khoom.
Q2: Nws puas tuaj yeem ua peb lub logo ntawm cov khoom?
A2: Yog lawm, OEM muaj, suav nrog cov qauv tshwj xeeb, xim, logo, ntim thiab lwm yam.
Q3: OEM muab?
A3: Yog lawm, OEM thiab ODM muaj. Customized.
Q4: Yuav ua li cas txog lub sijhawm khoom xa tuaj?
A4: Txog 25-30 hnub tom qab tau txais qhov tso nyiaj thiab kev pom zoo ntawm txhua tus qauv tsim raws li qhov xwm txheej ib txwm muaj.
