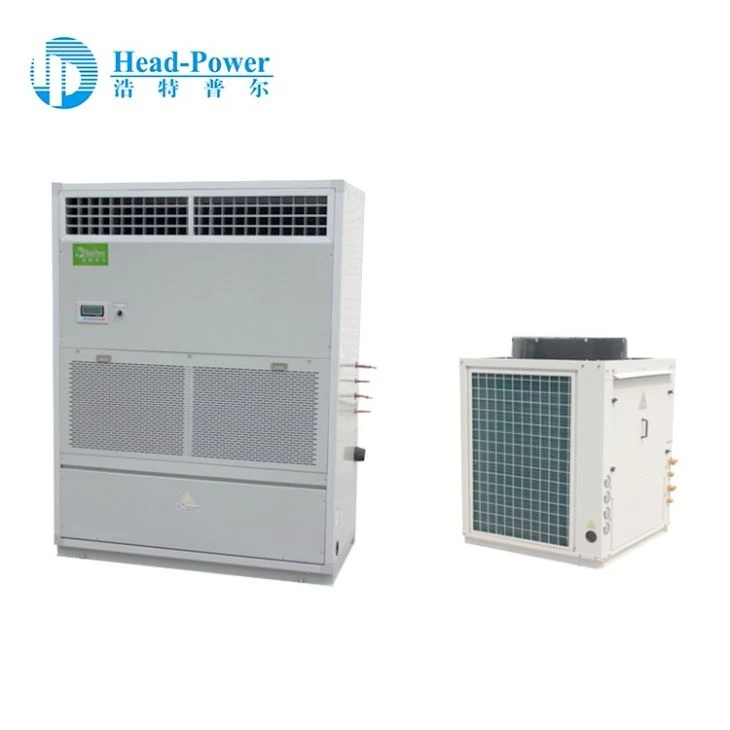

Warehous Split Centralized Cua Txias

Split cua txias yog qhov zoo tshaj plaws kawg cov khoom ntawm nruab nrab cua txias, kiv cua coil yog dav siv nyob rau hauv tsev so, chaw ua hauj lwm vaj tse, tsev kho mob, coj mus muag thiab nyob rau hauv lub tsev, kev tshawb fawb cov tsev. Ntxuam yuav yog huab cua sab hauv tsev lossis sab nraum zoov sib xyaw ua ke los ntawm qhov chaw txias txias kom txias lossis cua sov rau hauv tsev, kom qhov kub hauv tsev txo qis lossis nce ntxiv, kom ua tau raws li kev nplij siab ntawm tib neeg.

Xa kev nug

Tsham tam sim no

Khoom feature:

1.Warehous Split Centralized Cua Txias yog tsim los yooj yim thauj thiab nruab.
2.Warehous Split Centralized Air Conditioner tuaj yeem ntsia tau rau sab hauv lossis sab nraum zoov, uas tuaj yeem ua tau raws li ntau yam kev xav tau.

3.Warehous Split Centralized Air ConditionerOptional Accessories: saj zawg zog corrugated duct, txuas flange

4. Muab peb lub zog (txias, cua sov, dehumidifying) rau hauv ib lub tshuab cua txias.

Technical specification:

Cua Txias Split Cua Txias
Sab Hauv Tsev Qauv No.	HAM / HAD / HAL
Unit Performance	Lub peev xwm txias	kW	7.8~250
Cua Flow	m³/h	1350~35000
Fais fab mov		220V / 380V / 415V / 440V-3N-50Hz / 60Hz
Cov tub yees		R22/R407c/R410a/R134a
Chav nyob sab hauv	Evaporator		Copper tubes nrog aluminium fins
Ntxuam thiab Tsav	Hom kiv cua		Ultra-low-suab nrov Centrifugal
Hwj chim	kW	0.3~20
StartMethod	Direct-tsav
Txoj kev txuas		Flare qhib
Sab nraum zoov Model No.	SW
Sab nraum zoov	Compressor	Hom	Hermetic scroll compressor
Hwj chim	kW	2.25~72
Hom Condenser		Copper tubes nrog aluminium fins
Condenser ntxuam	Hom		Ultra-low Axial ntxuam
Hwj chim	kW	0.37~8.8
Txuas tooj liab Tubes	Cov raj roj	Loj (mm)	Φ19.1/Φ28
Ntau	1~8
Cov raj ua kua	Loj (mm)	Φ12.7/Φ15.9
Ntau	1~8
Txoj kev txuas		Flare qhib
