Khoom feature:
1. Zoo tsim, ruaj khov qauv thiab yooj yim txij nkawm.
2. Digital kub tswj thiab siab precision ntawm kub tswj.
3. Qhov rooj mounted, sab mounted thiab sab saum toj mounted muaj.

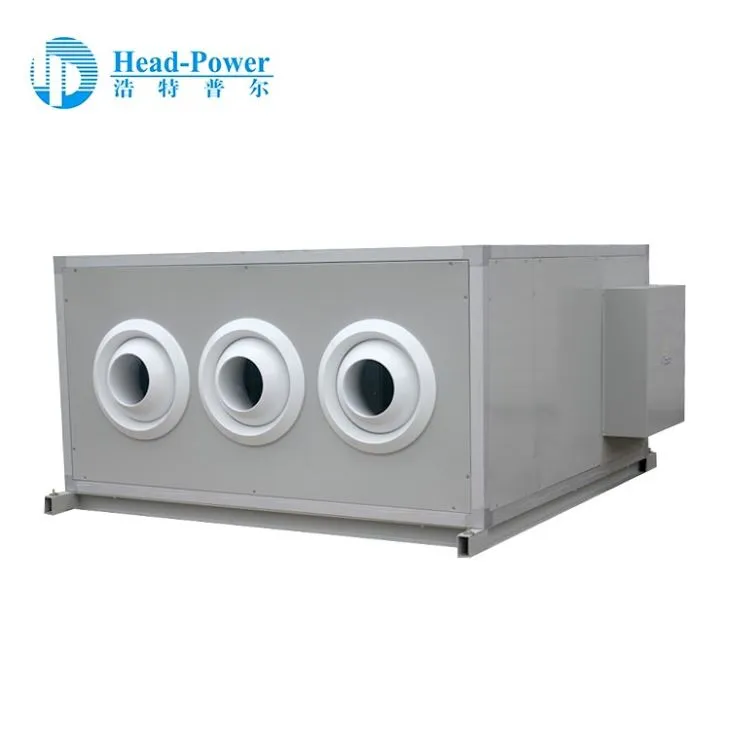

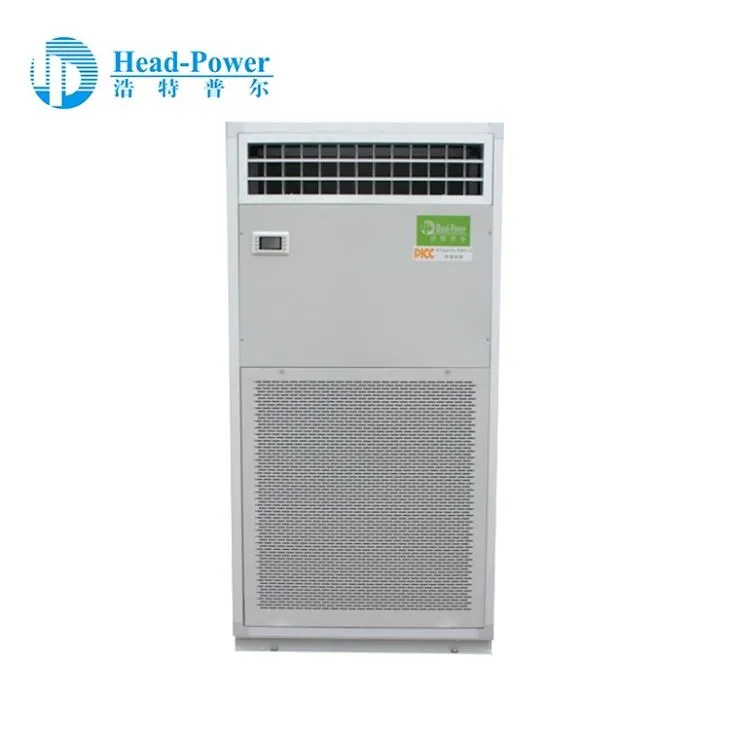

4.Electric Panel Split Air Cooled Air Conditioner yog ib qho yooj yim installation, me me nyhav, me me tag nrho qhov ntev, dav siv tau.
5. Lub thawv hom qauv nrog hermetic compressor, uas yog compact thiab qab ntxiag saib, muaj feem xyuam rau cov khoom txias txias, chav txias cia, dej khov thiab lwm yam.
6.Electric Vaj Huam Sib Luag Split Cua Txias Txias Cua Txias yog siv tau yooj yim hermetic scroll compressor; tsis tshua muaj kev vibration& suab nrov, kev ntseeg tau zoo.
7. Copper raj& aluminium fin hom kub exchanger, high efficiency thiab lub neej ntev.
8.Electric Panel Split Air Cooled Air Conditioner yog built-in junction box.
Technical specification:
Cua Txias Split Cua Txias | |||
Sab Hauv Tsev Qauv No. | HAM / HAD / HAL | ||
Unit Performance | Lub peev xwm txias | kW | 7.8~250 |
Cua Flow | m3/h | 1350~35000 | |
Fais fab mov | 220V / 380V / 415V / 440V-3N-50Hz / 60Hz | ||
Cov tub yees | R22/R407c/R410a/R134a | ||
Chav nyob sab hauv | Evaporator | Copper tubes nrog aluminium fins | |
Ntxuam thiab Tsav | Hom kiv cua | Ultra-low-suab nrov Centrifugal | |
Hwj chim | kW | 0.3~20 | |
StartMethod | Direct-tsav | ||
Txoj kev txuas | Flare qhib | ||
Sab nraum zoov Model No. | SW | ||
Sab nraum zoov | Compressor | Hom | Hermetic scroll compressor |
Hwj chim | kW | 2.25~72 | |
Hom Condenser | Copper tubes nrog aluminium fins | ||
Condenser ntxuam | Hom | Ultra-low Axial ntxuam | |
Hwj chim | kW | 0.37~8.8 | |
Txuas tooj liab Tubes | Cov raj roj | Loj (mm) | Φ19.1/Φ28 |
Ntau | 1~8 | ||
Cov raj ua kua | Loj (mm) | Φ12.7/Φ15.9 | |
Ntau | 1~8 | ||
Txoj kev txuas | Flare qhib | ||
FAQ:
Q1: Yuav ua li cas txog qhov warranty?
A1: Lub warranty yog 18 lub hlis tom qab xa khoom.
Q2: Yuav ua li cas txog qhov zoo ntawm koj cov khoom?
A2: Peb cov khoom nruj me ntsis tsim raws li lub teb chaws thiab thoob ntiaj teb tus qauv. Peb tau txais ISO zoo thiab CE, CCS, SGS ... thiab lwm yam.
Q3: Dab tsi' koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A3: Polyfoam thiab ntoo rooj plaub. Nws yuav zoo heev rau shipping.
Q4: Hom kev them nyiaj twg koj txais?
A4: Peb lees txais T / T, L / C, ntau txoj kev them nyiaj qhib. 30% tso nyiaj, 70% tshuav nyiaj li cas yuav tsum tau them ua ntej khoom xa tuaj.
