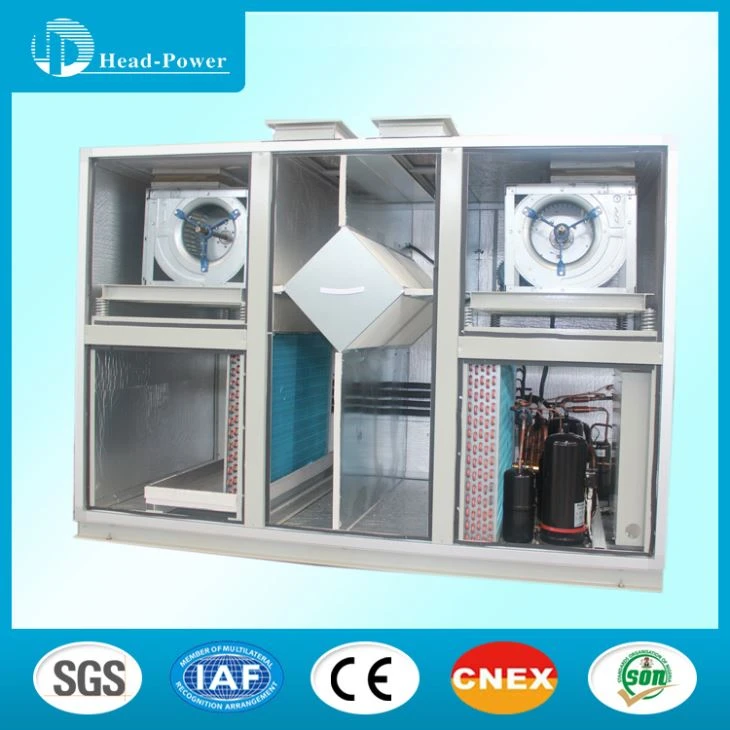

Khw Muag Khoom Aircooled Heat Recovery Air Handling Unit

tuaj yeem txias, qhuav, cua sov, humidify, lim thiab purify cua nrog Silencer muaj nuj nqi. Nws tuaj yeem siv dav hauv qhov chaw uas yuav tsum tau ua kom huab cua txias hauv qhov chaw nruab nrab, xws li cov khw muag khoom, tsev so, cov tsev ua haujlwm thiab chaw ntau pob, nrog rau lwm qhov chaw ua kom huv si, xws li chav tsev kho mob, chaw ua tshuaj, luam yeeb, khoom noj khoom haus, precision instruments manufacturing chav.

Khoom feature:

Khw Muag Khoom Aircooled Heat Recovery Air Handling Unitcan txias, qhuav, cua sov, humidify, lim thiab purify cua nrog Silencer muaj nuj nqi.

Lub khw muag khoom Aircooled Heat Recovery Air Handling Unit tuaj yeem siv dav hauv qhov chaw uas huab cua yuav tsum tau ua kom txias hauv qhov chaw nruab nrab, xws li khw malls, tsev so, chaw ua haujlwm thiab chaw ntau pob, nrog rau lwm qhov chaw ua kom huv si, xws li chav ua haujlwm hauv tsev kho mob, chaw muag tshuaj, luam yeeb, khoom noj khoom haus, precision instruments manufacturing chav.

Technical specification:

Thaum tshav kub kub twj tso kua mis Thaum tshav kub kub rov qab Air Handling Unit
Qauv No.		HAX
Nominal txias muaj peev xwm	kW	9-216
Nominal cua sov muaj peev xwm	kW	9.5-224
Fais fab mov		220V-460V / 3PH / 50Hz-Hz
Cov tub yees		R22/R407c/R410a/R134a
Compressor	Hom		Hermetic Scroll
Hwj chim	kW	1.7-36
Exhaust cua system	Cua ntim	m³/h	1500-33000
ESP.	Pa	100-550
Lub cev muaj zog	kW	0.55-15
Huab cua tshiab	Cua ntim	m³/h	1000-20000
ESP.	Pa	80-480
Lub cev muaj zog	kW	0.2-5.5
Thaum tshav kub kub exchanger efficiency		＞87%
Lub suab nrov	dB (A)	48-68
Qhov ntev	LWH	mm	2000x1500x850
Net nyhav	kg	380-1700

high efficient heat recovery unit

commercial heat recovery fresh air handling unit

air to air heat recovery

heat recovery for buildings

single room ventilation systems

air exchanger heat recovery

RFQ:

Q1: Yuav ua li cas txog qhov zoo ntawm koj cov khoom?

A1: Peb cov khoom nruj me ntsis tsim raws li lub teb chaws thiab thoob ntiaj teb tus qauv. Peb tau txais ISO zoo thiab CE, CCS, SGS ... thiab lwm yam.

Q2: Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?

A2: Peb yog cov chaw tsim khoom tshwj xeeb hauv kev tsim cov khoom HVAC txij li xyoo 2001.

Q3: Dab tsi' cov nqe lus ntawm kev xa khoom?

A3: EXW, FOB, CFR, CIF.

Q4: Koj lub tuam txhab tuaj yeem tsim lub tshuab tsis yog tus qauv?

A4: Tseeb, peb lub Hoobkas muaj 20 xyoo dhau los hauv kev tsim khoom, peb kuj muab lub tshuab raws li qhov tshwj xeeb muab los ntawm cov neeg siv khoom. Koj tsuas yog yuav tsum tau muab cov kev txwv rau peb, peb cov engineers yuav muab koj ua haujlwm thawj zaug.
