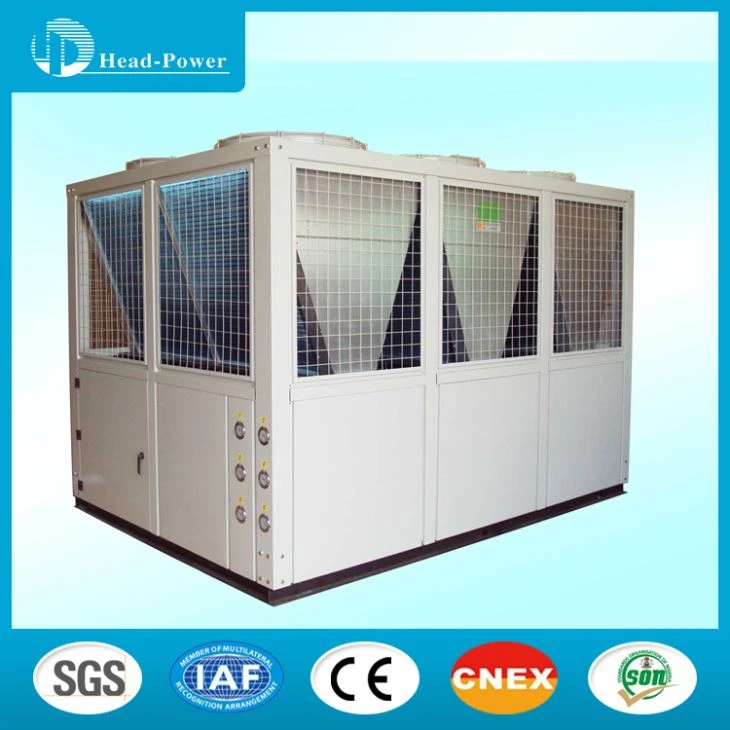

Cua Txias Scroll Modul Paj Harga Chiller

1.Installed nrog ntiaj teb nto moo compressors, zoo heev plhaub condenser thiab evaporator, txias zoo heev, nyob ntsiag to thiab tsis muaj hluav taws xob noj.2.Microprocessor tswj, yooj yim rau kev khiav lag luam.3.Installed nrog tam sim no overload tiv thaiv, siab thiab tsis tshua muaj siab hloov, hluav taws xob timer ncua , fault display system.4.Screen kua siv lead ua zaub ntawm txias dej tawm cia thiab inlet nrog kub setting.5.Single los yog ob chav compressors ua ke unit available.6.High efficiency cua condenser thiab loj cua ntim axial txaus tsim.

1. Cua Txias Scroll Modul Paj Harga Chiller tau nruab nrog lub ntiaj teb nto moo compressors, muaj txiaj ntsig zoo ntawm lub plhaub condenser thiab evaporator, txias txias, ntsiag to thiab tsis tshua muaj hluav taws xob noj.

2.Microprocessor tswj, yooj yim rau kev khiav lag luam.

3. Cua Txias Scroll Modul Paj Harga Chiller tau nruab nrog tam sim no overload tiv thaiv, siab thiab tsis tshua muaj siab hloov, hluav taws xob timer ncua, kev ua txhaum qhov system.

4.Screen kua siv lead ua zaub ntawm cov dej txias tawm cia thiab inlet nrog qhov kub thiab txias.

5. Cua Txias Scroll Modul Paj Harga Chiller txais ib qho los yog ob npaug los yog ntau compressors ua ke.

6.High efficiency cua condenser thiab loj cua ntim axial txaus tsim.

Technical specification:

Modular Cua Txias Scroll Dej Chiller
Qauv No.		HWAC
Lub peev xwm txias	kW	7-300
Fais fab mov	220V-380V-460V/3N/50Hz-60Hz
Cov khoom siv kev nyab xeeb	Kev kub siab & tsis tshua muaj siab hloov, tiv thaiv khov tiv thaiv, tiv thaiv overload, tiv thaiv theem tiv thaiv, tiv thaiv sab hauv overheat, dej ntws hloov, thiab lwm yam.
Tswj kev ua haujlwm	Microcomputer tswj tau txais, ceeb toom txawv txav, kuaj xyuas tus kheej, ua haujlwm tshuav nyiaj li cas, tswj chaw taws teeb (yeem), Timer rau / tawm
Cov tub yees	R22/R407c/R410a/R134a
Tswj ntim	Thermostatic expansion valve
Compressor	Hom	Semi-Hermetic scroll compressor
Hwj chim	kW	2.23~100
Compressor kom muaj nuj nqis	pcs	1~8
Cua sab cua kub exchanger	Hom kiv cua	Axial hom
Huab cua kev taw qhia	Sab saum toj tso tawm
Ntxuam zog	kW	0.1~6
Ntxuam kom muaj nuj nqis	pcs	1~12
Water side heat exchanger	Hom	Plhaub thiab lub raj
Dej ntws	m3/h	3~60
Dej tsis kam	kPa ua	20~80
Cov yeeb nkab txuas	DN	25~100
Cov khoom siv txee		Galvanized ntawv
Chav ntsuas L * W * H	mm	800x500x1200~2800x2100x2150

chiller scroll

10ton chiller scroll

35kw chiller scroll

10tr chiller scroll

120000btu chiller scroll

FAQ:

Q1. Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?

A1. Peb yog cov chaw tsim khoom tshwj xeeb hauv kev tsim cov khoom HVAC txij li xyoo 2001.

Q2: Koj yuav ua li cas rau peb lub lag luam mus ntev thiab kev sib raug zoo?

A2: 1. Peb khaws cov khoom zoo thiab cov nqi sib tw los xyuas kom peb cov neeg siv khoom tau txais txiaj ntsig; 2. Peb hwm txhua tus neeg siv khoom raws li peb tus phooj ywg thiab peb ua siab dawb ua lag luam thiab ua phooj ywg nrog lawv, txawm lawv tuaj qhov twg los.

Q3. Yuav ua li cas txog lub warranty?

A3. Lub warranty yog 18 lub hlis tom qab xa khoom.

Q4: Hom kev them nyiaj twg koj txais?

A4: Peb lees txais T / T, L / C, ntau txoj kev them nyiaj qhib. 30% tso nyiaj, 70 feem pua ntawm cov nyiaj yuav tsum tau them ua ntej xa khoom.
