| Kub kub cua txias compact qhov kub thiab av noo precision chav tsev ru tsev cua txias (Table 1) | |||||
| Kev Ua Qauv Qauv | WKT 3 | ||||
| Daim ntawv thov | lub tsev ua haujlwm txias | ||||
| Chav ua haujlwm | Cua txias cap | kW | 46 | ||
| Cua ntim | m3/h | 12000 | |||
| ESP | Pa | 195 | 200 | ||
| Lub suab nrov | dB (A) | 67 | 68 | ||
| Maximun ambient temp | 50-55 degree | ||||
| Kev tswj qhov kub thiab txias | 18 degree ~ 25 degree ± 1 degree | ||||
| Cov av noo | RH 40 feem pua -60 feem pua ± 5 feem pua | ||||
| Cov txheej txheem cua sov | Hluav taws xob cua sov | ||||
| Lub zog KW | 12 | ||||
| Humidifier | Electrode humidification | ||||
| Humidification muaj peev xwm kg/h | 8 kg/h | ||||
| Fais fab mov | 3N ~ 50HZ 380V-415V | ||||
| Txias qhov system | Cov tub yees | Hom | R134a | ||
| Throttling hom | Thermal expansion valve | ||||
| Compressor | Hom compressor | Lub npe nrov ntawm hermetic scroll compressor | |||
| Nominal zog | KW | 6.8×2 | |||
| Evaporator | Hom | Copper tubes tes tsho aluminium fins hom | |||
| Fins hom | Aluminium ob grooved fins | ||||
| Condenser | Hom | Copper tubes tes tsho dej zaj duab xis aluminium fins hom | |||
| Fins hom | Aluminium corrugated fins | ||||
| Muab cua system | Condensing kiv cua | Hom | Ultra low nrov axial hom kiv cua | ||
| Tsav tsheb hom | Direct tsav | ||||
| Lub cev muaj zog | KW | 0.75*2 | |||
| Muab cua ntxuam | Hom | Ultra low nrov ob chav inlet centrifugal ntxuam | |||
| Tsav tsheb hom | Siv tsav | ||||
| Lub cev muaj zog | KW | 4 | |||
| Cua lim | Nylon attapulgite ntxiv rau ntxhib G4, Ob chav pom | ||||
| Diamension | L | mm | 2300 | ||
| W | mm | 2000 | |||
| H | mm | 2100 | |||
| Qhov hnyav | kg | 900 | |||
Nqe lus piav qhia:
1. Nto moo hom hermetic scroll compressor, Hitachi, Copeland, Sanyo, thiab lwm yam.
2. Pob tsim, nyob rau saum ru tsev lossis qhib thiab theem groud, txuag qhov chaw installation, yooj yim installation.
3. Copper tubes nrog txhuas fins tshav kub exchanger, hydrophilic fins rau condenser, tooj liab fins
kuj muaj.
4. Microcomputer maub los, yooj yim interface, kho kub txiav, yooj yim rau
kev ua haujlwm thiab yooj yim rau kev tswj xyuas.
5. Galvanized steel ntawv, sab nraud hmoov coated, anti-corrosion thiab huab cua pov thawj hom condenser.
6. Canvas saj zawg zog duct kev twb kev txuas, siab static siab, haum rau industrial Hoobkas.
7. Huab cua ntshiab tuaj yeem qhia tau, txhim kho huab cua sab hauv tsev.
8. Cov dej kub cua sov coil lossis lub tshuab hluav taws xob tuaj yeem muab ntxiv, cov twj tso kua mis kub kuj muaj
9. Cov tub yees: R22, R407C, R134a yeem.
Txais tos kom nug.
Ms. Cindy

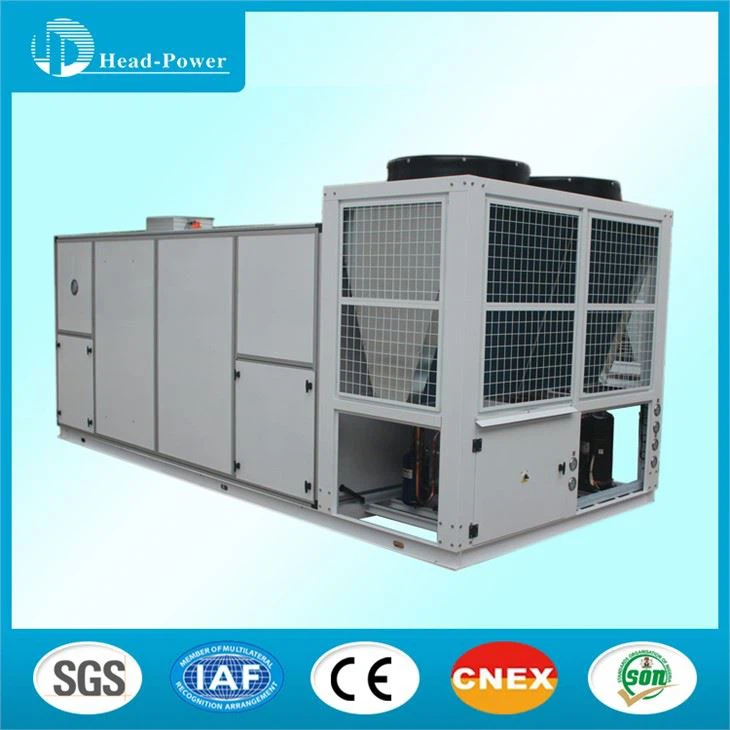

Cim npe nrov: t3 series r410a 50hz / 60hz 15 tuj 20ton 30ton rooftop ntim tsev, Tuam Tshoj, manufacturers, customized, quotation, luv nqi, ua nyob rau hauv Suav teb
