Khoom nta:
Laboratory Air Handling Unit, configuration of basic function, the first filter or medium efficiency air filter, cooling coil (npaum npoo, ua tau raws li qhov xav tau ntawm huab cua), nws siv chav dej, dej kub cua sov, los yog cov roj cua ncaj qha combustion cua sov seem (siab thermal efficiency, tsis tshua muaj nqi khiav); nws kuj yuav tsum tau teem lub reheat, tuaj yeem xaiv qhov txias reheat los tswj cov av noo thiab txhim khu lub zog theem, los yog teeb tsa lub rhaub hluav taws xob, kom paub txog thermal them rov qab tom qab lub caij ntuj sov dehumidification.Laboratory Air Handling Unitmainly. ua tau raws li aerospace, automotive, cov cuab yeej thiab meters, precision machining thiab lwm yam kev lag luam tshwj xeeb rau huab cua zoo.
Kev teeb tsa ntawm ntu kev ua haujlwm yog: ntu sib xyaw, ntu cua txias, ntu kiv cua, ntu kev ua haujlwm tseem ceeb (G4), ntu nruab nrab ua haujlwm lim (F8). Nyob rau tib lub sijhawm, Laboratory Air Handling Unitequipped nrog hluav taws xob cua sov, hluav taws xob humidification, muffler los siav siab huv, qhov kub thiab av noo, tsis tshua muaj suab nrov tswj kev huv. Xws li: kev soj ntsuam thiab cais tawm cov chaw kuaj mob, cov chaw tsim khoom siv hluav taws xob hluav taws xob, chaw tsim khoom siv roj ntsha R& D chaw, kev ua zaub mov, cov tshuab precision, kev ua tshuaj thiab chaw cia khoom thiab lwm qhov chaw uas muaj kev txwv nruj rau qhov kub thiab txias, kev huv.
Khoom piav qhia:

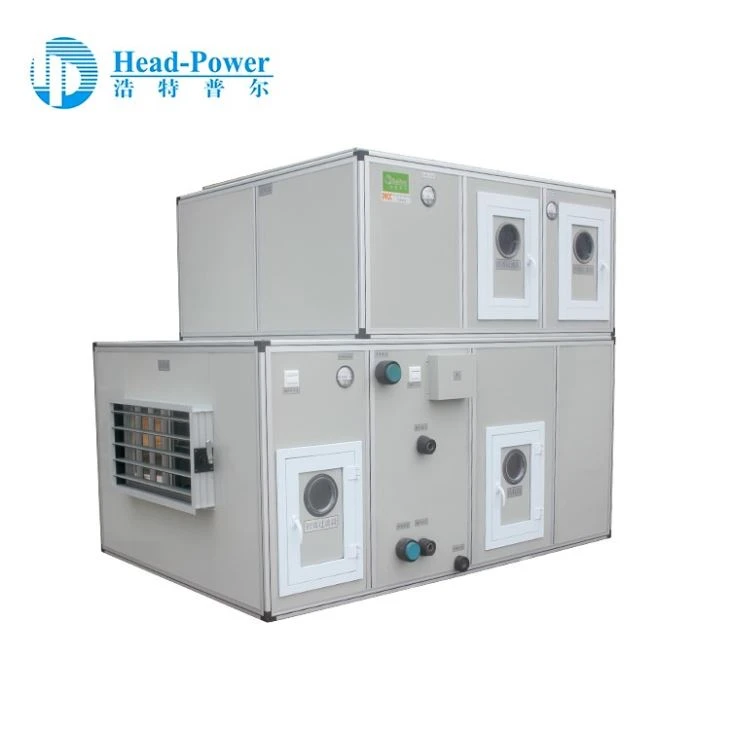

Laboratory Air Handling Unit | |||
Qauv No. | HAX | ||
Nominal txias muaj peev xwm | kW | 9-216 | |
Nominal cua sov muaj peev xwm | kW | 9.5-224 | |
Fais fab mov | 220V-460V / 3PH / 50Hz-Hz | ||
Cov tub yees | R22/R407c/R410a/R134a | ||
Compressor | Hom | Hermetic Scroll | |
Hwj chim | kW | 1.7-36 | |
Exhaust cua system | Cua ntim | m3/h | 1500-33000 |
ESP. | Pa | 100-550 | |
Lub cev muaj zog | kW | 0.55-15 | |
Huab cua tshiab | Cua ntim | m3/h | 1000-20000 |
ESP. | Pa | 80-480 | |
Lub cev muaj zog | kW | 0.2-5.5 | |
Thaum tshav kub kub exchanger efficiency | ＞87% | ||
Lub suab nrov | dB (A) | 48-68 | |
Qhov ntev | L*W*H | mm | 2000x1500x850 |
Net nyhav | kg | 380-1700 | |
FAQ:
Q1: Yuav ua li cas txog qhov warranty?
A1: Lub warranty yog 12 lub hlis tom qab xa khoom.
Q2: Dab tsi' cov nqe lus ntawm kev xa khoom?
A2: EXW, FOB, CFR, CIF.
Q3: Nws puas tuaj yeem ua peb lub logo ntawm cov khoom?
A3: Yog lawm, OEM muaj, suav nrog cov qauv tshwj xeeb, xim, logo, ntim thiab lwm yam.
Q4: Koj lub tuam txhab' yog dab tsi; qhov kev pab cuam tom qab muag?
A4: Peb lub sijhawm lav yog ib xyoos. Yog tias muaj teeb meem hauv lub xyoo no, peb tuaj yeem xa cov khoom tshiab rau koj los hloov. Lub caij no, zoo siab txais tos rau kev sab laj kev paub txog kev paub.
Cim npe nrov: Laboratory Air Handling Unit, Tuam Tshoj, manufacturers, customized, quotation, luv nqi, ua nyob rau hauv Suav teb
